产品描述：产品概述 生产动作流程 2大卷无纺布卷材上机→分切→幅宽方向N折→加液→挤压牵引→切断→计数堆叠→进入包装膜1卷包装膜卷材上机→跟标/定长走料→打椭圆孔→贴封口贴→包裹湿巾→纵向背封→往复式横封及...
15896100778
生产动作流程
2大卷无纺布卷材上机→分切→幅宽方向N折→加液→挤压牵引→切断→计数堆叠→进入包装膜1卷包装膜卷材上机→跟标/定长走料→打椭圆孔→贴封口贴→包裹湿巾→纵向背封→往复式横封及切断→打码→成品输送（不含粘盖）
2 rolls of non-woven fabric on the machine → slitting → N-folding in the width direction → adding liquid →
Squeeze out excess liquid and traction → cutting off → counting → entering the packaging film
1 roll of packaging film on the machine → following cursor / fixing length feeding → punching elliptical holes → sticking seals → wrapping wet wipes → longitudinal back sealing → reciprocating horizontal sealing and cutting→ coding → finished product delivery (without plasic cover )
设备双伺服电机配置，触摸屏内设定袋长，无空包。
配套进口光电眼，色差灵敏度高，定位更准确。
配套打码机打印日期。
The equipment is equipped with double servo motors, and the bag length is set in the touch screen without empty bags
Equipped with imported photoelectric eyes, high color difference sensitivity and more accurate positioning.
Matching printer to print the date
| 参数名称 | 参数值 |
|---|---|

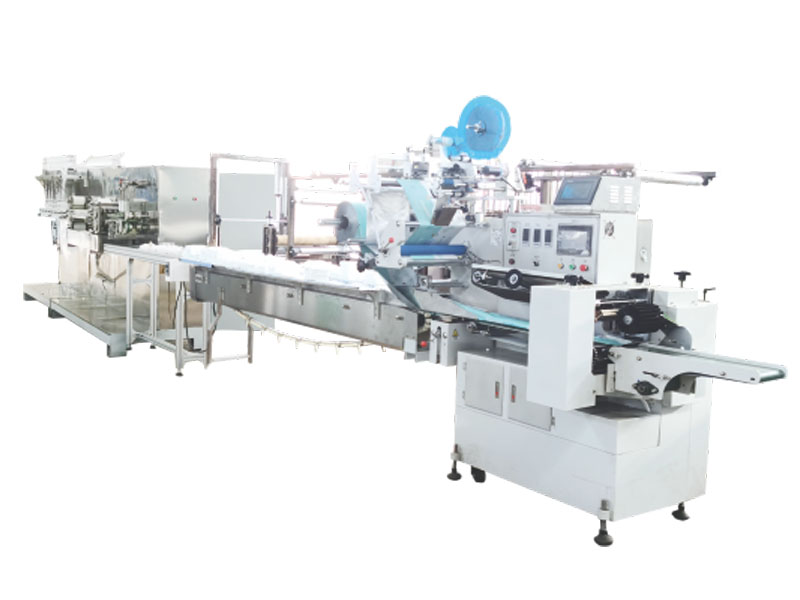

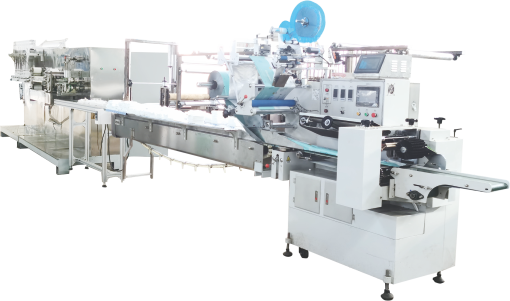

| 设备名称 | 全自动30-120片湿巾生产线 |
| 型号 | YWJ-QS-F |

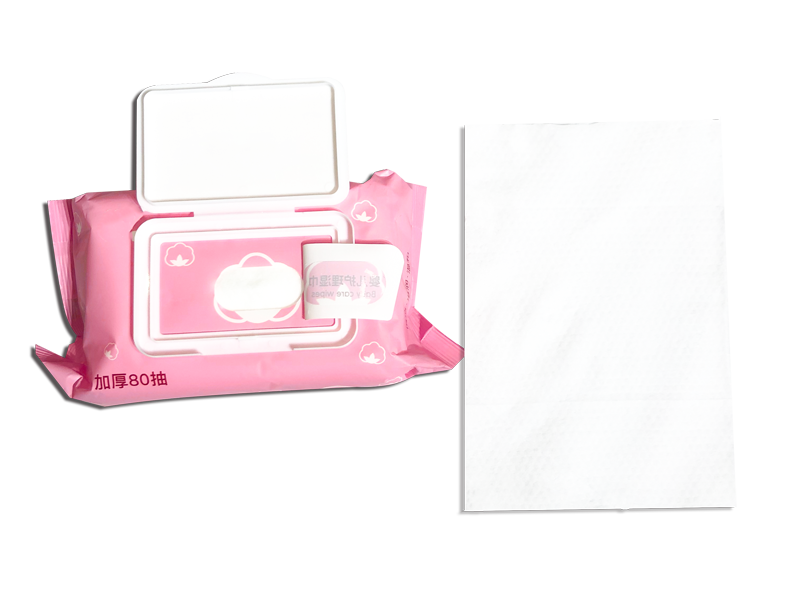

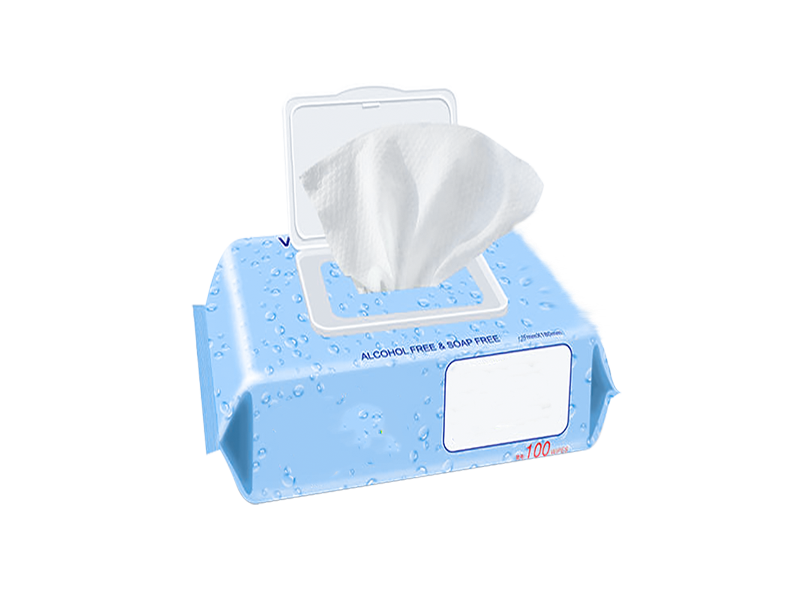

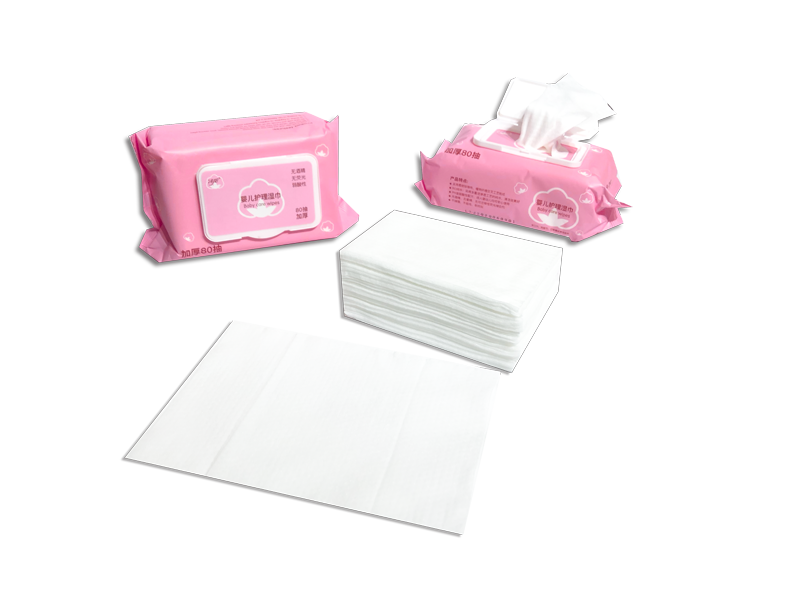

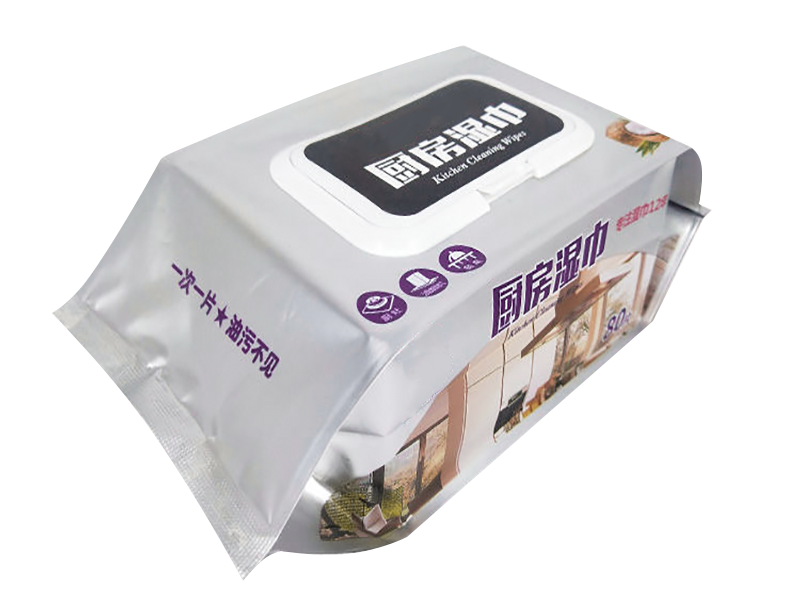

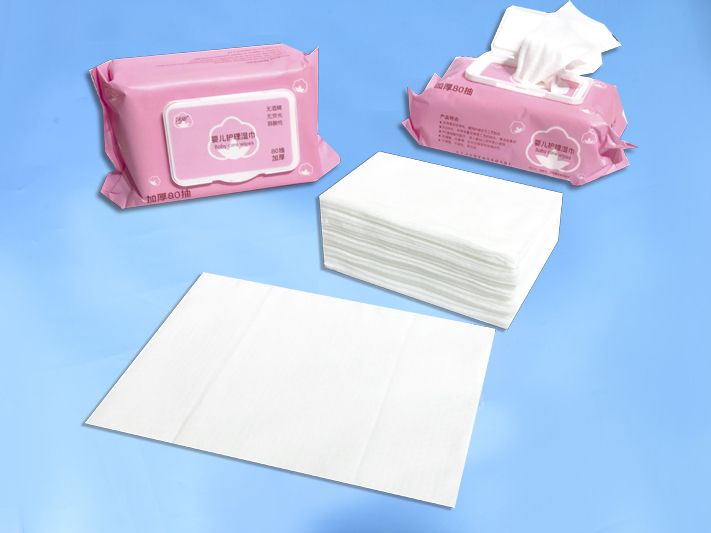

| 适用产品 | 各种尺寸和液体类型的带插角包装带多片湿巾 |
| 折叠方法及尺寸 | 无纺布卷材幅宽900-1250mm 分切后150-250mm， N形折叠 |
| 原料纸管内径 | 3英寸（75mm） |
| 原料直径 | 无纺布≦1000mm 包装膜≦400mm |
| 包装膜原材料及幅宽 | 各种0pp热封膜/复合膜/铝塑复合膜/珠光膜等 |
| 成品湿巾外包装尺寸范围 | 宽 80-150mm 长150-300mm 高10-100mm |
| 生产速度 | 20-60包/分钟 速度根据每包片数确定 |
| 电源电压及频率 | 380v，50hz，11kw |
| 设备重量 | 4500kg |
| 生产占地面积 | 14.5m*4m*1.95m |
| 气源需求 | 0.5-0.8（Mpa）>0.36（m3/h) |
| 设备材质 | 整机不锈钢包覆 |
该生产线由三部分组成：
The production line consists of three parts
① 12道湿巾折叠加液机

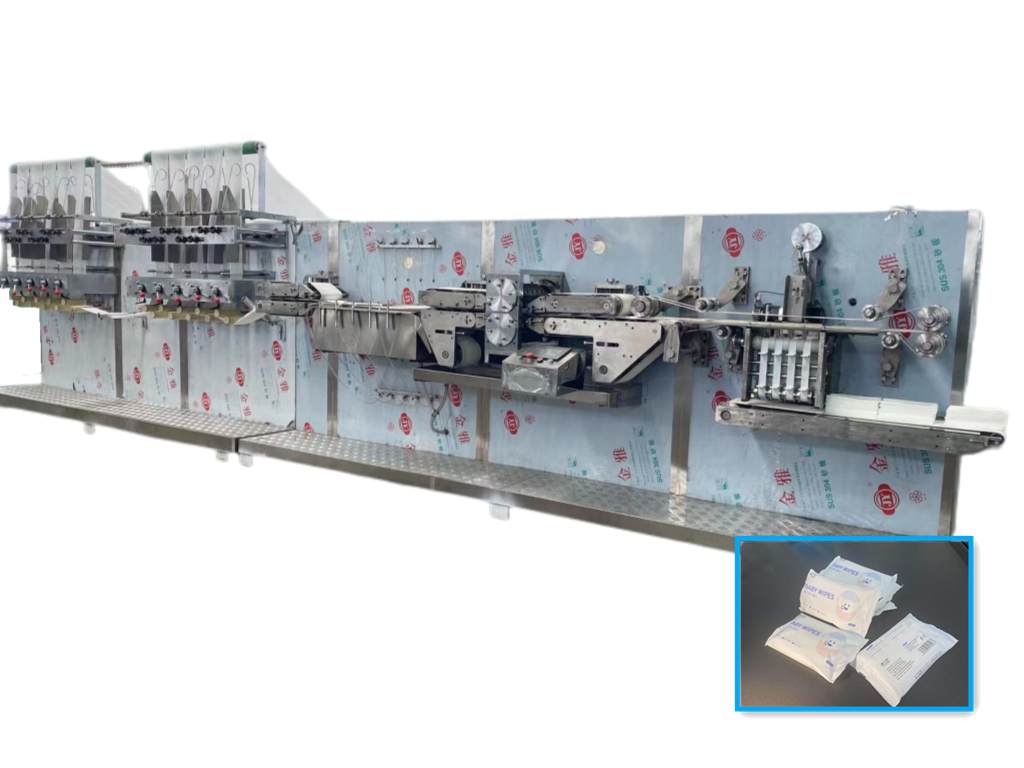

12 lines wet wipes adding liquid and folding machine
② 全自动湿巾包装机

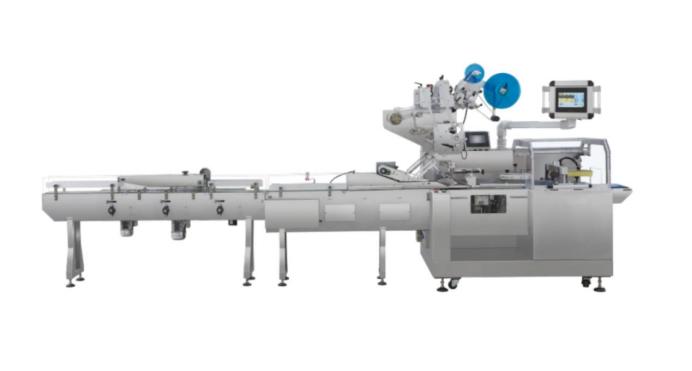

Automatic wet wipes packing machine
③ 全自动机械手贴盖机
Automatic manipulator capping machine
2大卷无纺布卷材上机→被动放料→分切→幅宽方向N折→加液→牵引→长度方向切断→计数码料
Large roll of non-woven coil on the machine→Passive feeding→Slitting
→N-fold in width direction→ Feeding →Towing→Length direction cut- off
→ recording palletizing
包装膜上机→打码→开椭圆孔→定位贴标→制袋→湿巾进袋→ 纵向背封→赶气→往复式横封及插角→切断→制品输出
Packaging film on the machine→Coding→Punching the elliptic hole→Locating and labeling→Bag making→Wet towel into the bag→Longitudinal back seal→Air release→Reciprocating cross seal and insert angle→Cutting→Products delivery

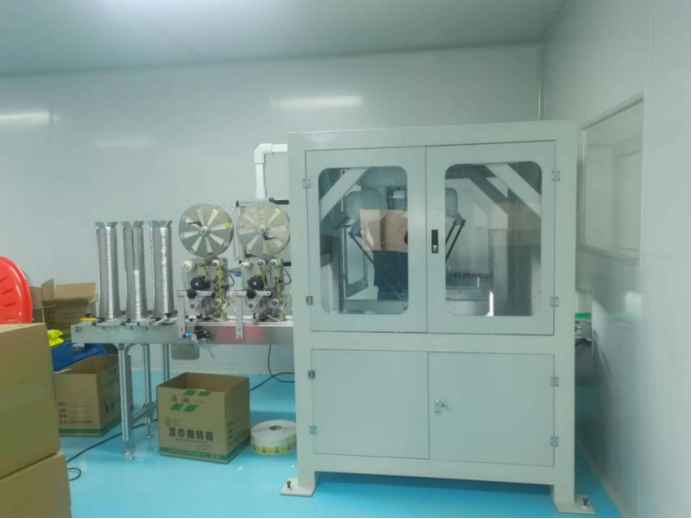

塑料盖放入集料槽→自动出料→贴标→机器手抓取→喷胶→视觉检测来料湿巾→贴盖→成品输出
Plastic cover placed into the aggregate tank→Automatic discharge→labeling→ manipulator grabbing→spraying→Visual detection of the incoming material of wet wipes→Stick cover→Products delivery
60-65包每分钟
